Introduction

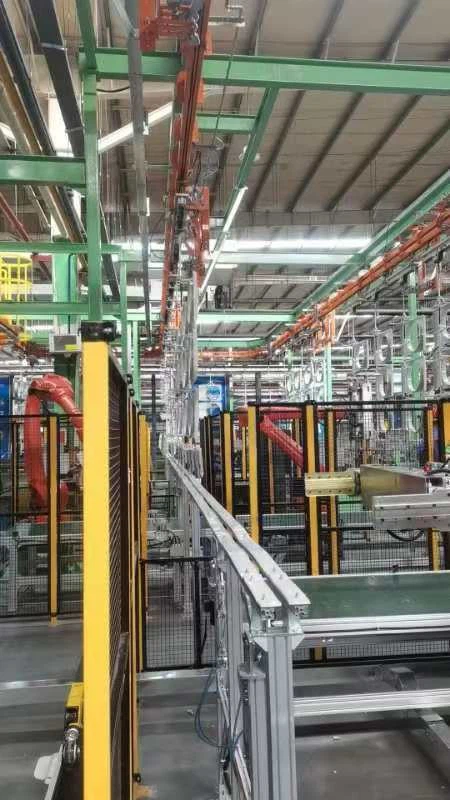

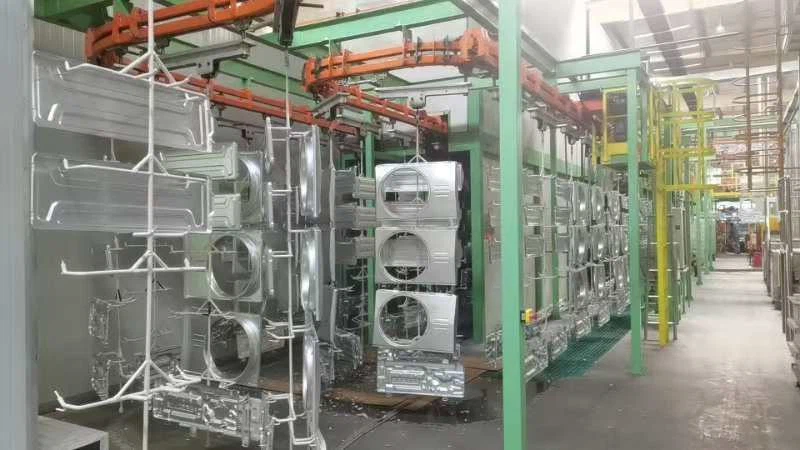

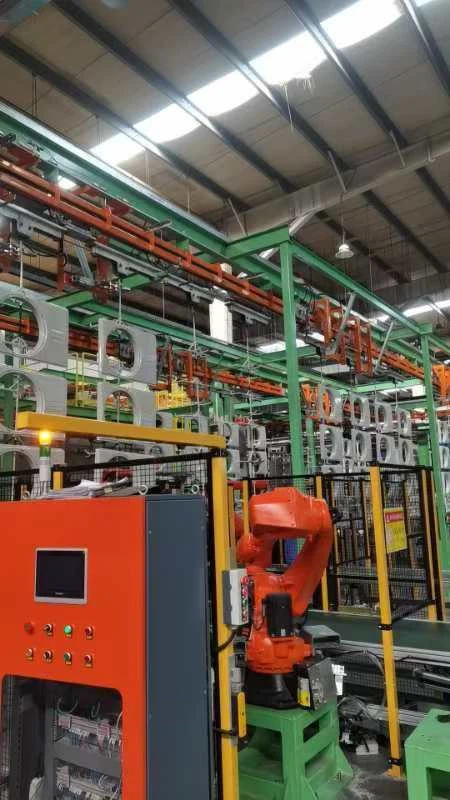

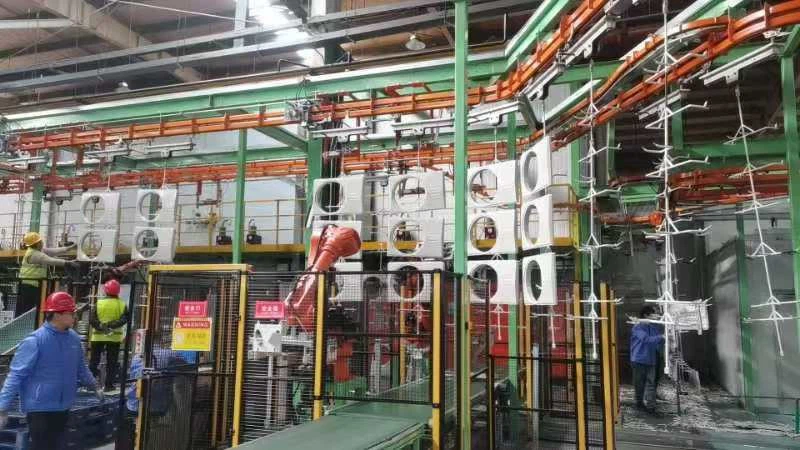

The Light Duty PF Overhead Conveyor is a flexible, space-saving transport system designed for handling small to medium-sized products in assembly, painting, or packaging operations.
Power and Free overhead conveyors have three basic capacities
| Light-duty P&F Overhead Conveyor | |||||
|
Conveyor Type |
Track Section |
Single-Trolley Load Capacity (kg) |
Chain Pitch (mm) |
Chain Allowable Traction (kg) |
Chain UTS (kg) |
|
WFJ50 |
71x68x4 |
50 |
206.4 |
500 |
5000 |
|
WFJ3 |
71x68x4 |
250 |
206.4 |
500 |
5000 |
| Heavy-duty P&F Overhead Conveyor | |||||
| Conveyor Type | Track Section |
Single-Trolley Load Capacity (kg) |
Chain Pitch (mm) |
Chain Allowable Traction (kg) |
Chain UTS (kg) |
|
WTJ3 |
1 8 DB |
250 |
76.6 |
900 |
10000 |
|
WTJ4 |
110 [I10 |
500 |
102.4 |
1500 |
21800 |
|
WTJ6 |
110 [I16 |
1000 |
153.2 |
2700 |
38600 |
|
WWJ4 |
110 [U4" |
500 |
102.4 |
1500 |
21800 |
|
WWJ6 |
110 [J6" |
1000 |
153.2 |
2700 |
38600 |
| Ultra Heavy-duty P&F Overhead Conveyor | |||||
| Conveyor Type | Track Section |
Single-Trolley Load Capacity (kg) |
Chain Pitch (mm) |
Chain Allowable Traction (kg) |
Chain UTS (kg) |
|
TZJ6 |
110 I112 |
7000 |
153.2 |
2700 |
38600 |
Features
Smooth operation
The drive system of our product is equipped with a high-precision reduction motor with stable output. The clearance between the guide rollers is controlled within ±0.1mm to ensure that the chain runs smoothly without jumping.
Flexible installation
The Light Duty PF Overhead Conveyor adopts a modular design, and the track, hanging components, and drive unit can be flexibly arranged according to the site. The minimum turning radius can reach 600mm, and the maximum vertical lifting height supports 6 meters. It is suitable for space crossing between complex process sections and multiple stations, especially for lean production lines with high requirements for space utilization.
