Introduction

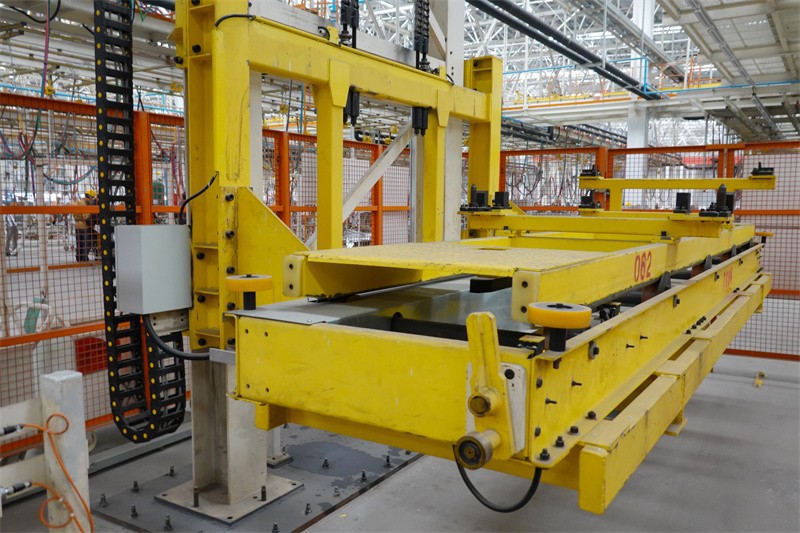

The Plastic Single-path and Dual-path Slat Conveyor is a modular conveyor system built with plastic slat chain plates mounted on flexible tracks, designed for lightweight-to-medium load transport in packaging, food, electronics, and pharmaceutical industries.

Features

High-load-bearing structure design
The Plastic Single-path and Dual-path Slat Conveyor adopt chain plate structure formed by welding thick steel plates, combined with industrial-grade roller chains, with extremely strong load-bearing capacity. The thickness of a single chain plate is usually 5-8mm, and the pitch of the chain link is more than 100mm, which can support a load of more than 800 kg per meter of conveying surface.

High temperature resistance
The surface of the chain plate is treated with high temperature or chrome plating, and the whole can withstand a continuous working temperature of up to 250℃, which is suitable for environments such as heat treatment lines and drying lines.

Stable operation
The operation of the chain plate is completed by the motor-driven roller chain. The chain runs through the roller support, and rolling friction replaces sliding friction, reducing energy consumption and component wear.

Equipment Description

1). Technical parameters of accompanying plastic plate belt:

Shaft to shaft transmission distance: L1=42m/L2=36m/L3=48m
Station spacing: 6m
Load capacity: 3 persons/station
Mesh belt width: 2625 mmW
Friction coefficient: average friction coefficient 0.3
Module mesh belt: M5023PP+AS/PA (pitch 50.8mm)
Mesh belt pin: PA
Support plate material: UHMWPE+EC
Maximum speed: 6-8m/min
Main motor power (80% transmission efficiency): 4kW
Driving shaft torque: 2410Nm
Driven shaft tension motor (80% transmission efficiency): 2.2 kW0
Driven shaft torque: 1200Nm
Number of drive wheel gears: 21 teeth PA6
Number of driven wheel gears: 21 teeth PA6

2). Description of main conveying equipment:

Single-path plastic module mesh conveyor is mainly composed of drive unit, transmission shaft assembly, tension shaft assembly, transmission shaft bracket, tension shaft bracket, intermediate support steel structure, head pit steel structure, tail pit steel structure, and plastic module mesh belt.
