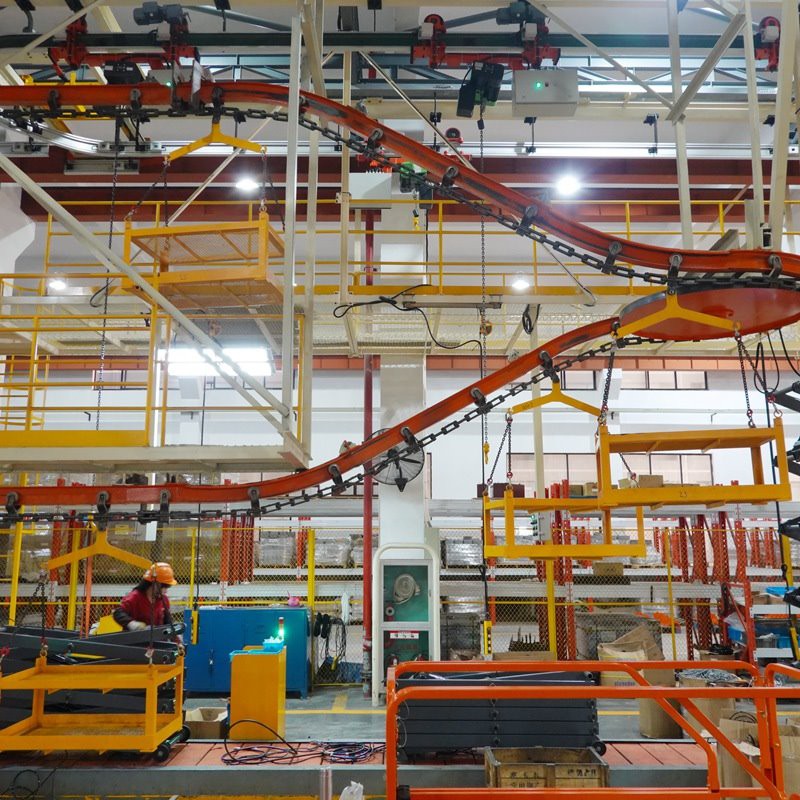

Overhead Load Towing Truck Conveyor

The overhead load towing truck conveyor is used for hanging parts that need movement, waiting and release at different stations. Loads can be planned up to about 500 kg per carrier by structure.
It fits assembly or inspection lines where heavy or medium parts must pause near workers without blocking the floor.

Send Inquiry

The overhead load towing truck conveyor uses a power-and-free style layout. A carrier can move with the main chain, wait in a buffer area, and then leave the station when the process is ready. This makes it different from a simple continuous line. The track, trolley and stop devices must match part weight and center of gravity. The route should be planned with station time, switch position and safe clearance in mind because every stop point affects the next section.

Product Parameters

Parameter	Value
Carrier capacity	5-500 kg by route
Track structure	Double-layer C-channel
Chain system	Power and free
Station function	Stop, buffer and release
Control option	Manual or automatic

Product Advantages

Carriers can wait without stopping the whole line.

Buffer space helps balance slow and fast stations.

Heavier parts move overhead with less floor handling.

Components

The overhead load towing truck conveyor includes double-layer track, power chain, free trolley, load carrier, drive unit, take-up unit, stops, switches, curves and control parts.
